Concrete Trowel Machine Gpt836 (CE) , Ride on Power Trowel, Concrete Trowel
Ride-on trowel works efficiently and cost-effective for accurate and highly productive finishing or large concrete surface and super FF falt floor tolerance.Features:1. Heavy duty gearbox provides longer life and low maintenance.2. Steering system features a twin stick multi-directional steering sys......
Send Inquiry
Product Description
Ride-on trowel works efficiently and cost-effective for accurate and highly productive finishing or large concrete surface and super FF falt floor tolerance.
Features:
1. Heavy duty gearbox provides longer life and low maintenance.
2. Steering system features a twin stick multi-directional steering system, providing immediate machinecontrol and precise maneuverability
3. Fine hand control for able pitch ensure precise blade adjustment.
4. Tilt forward seat reveals a bulit in hoist hook for transport on or off the work site and allow easy engine access.
5. Adjustable sliding seat for Front-To-Back.
6. Low machine profiles provide a low center of gravity and check the working area easily.
7. Rugged frame is made of harden steel for severest site conditions.
8. Super heavy-duty gearbox and spider assemblystands up for the most grueling job.
9. Side mounted fuel tank and water tank with big wolume for long working time
10. Trowel arm alignment: Adjustment screws allow easy job site blade alignment.
11. Light is adjustment for different direction.
12. Tool kit convenient location easy for operator.
Specifications for GMQ836

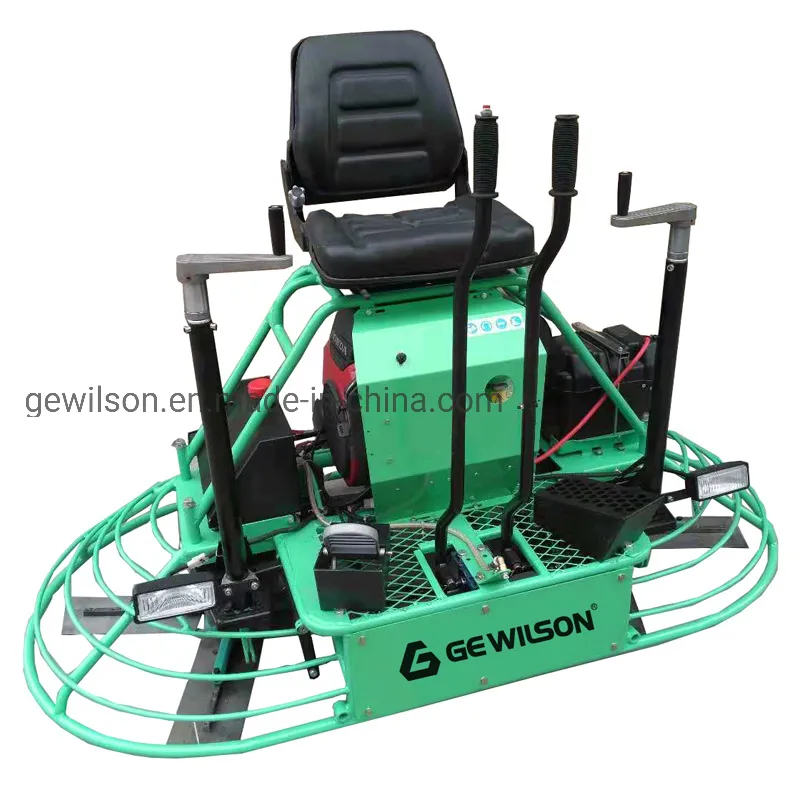

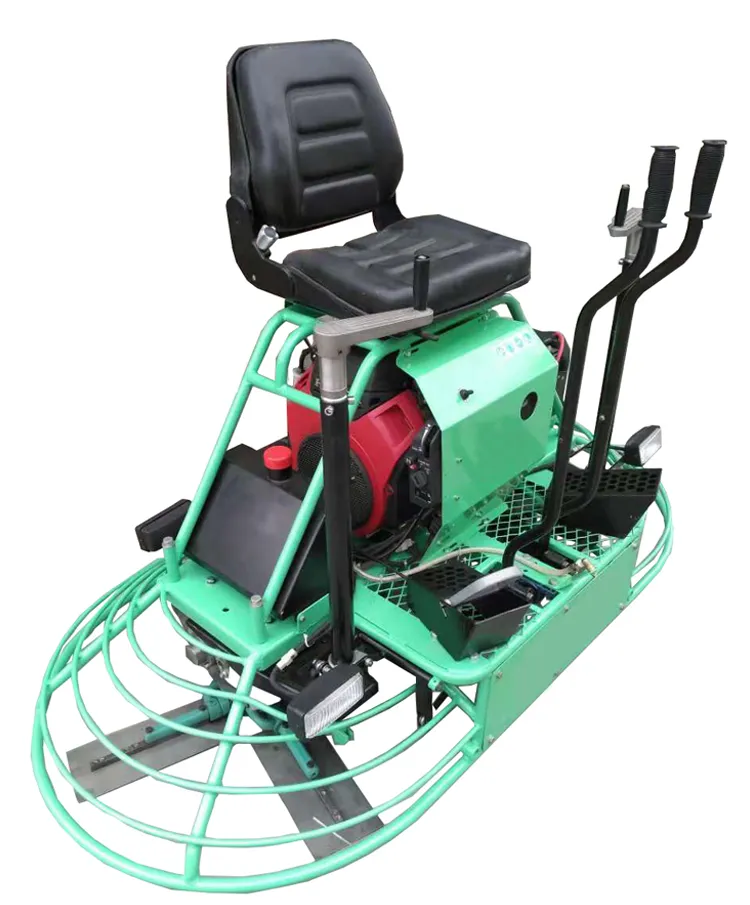

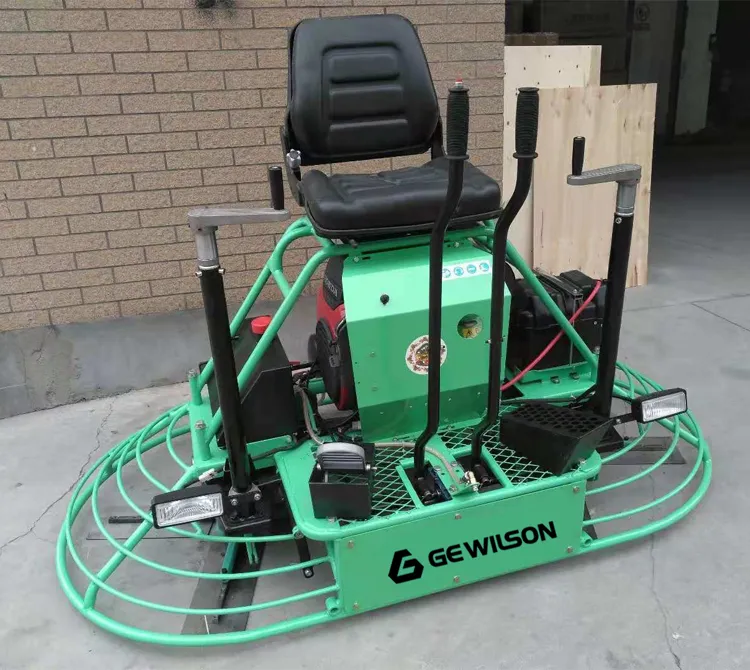

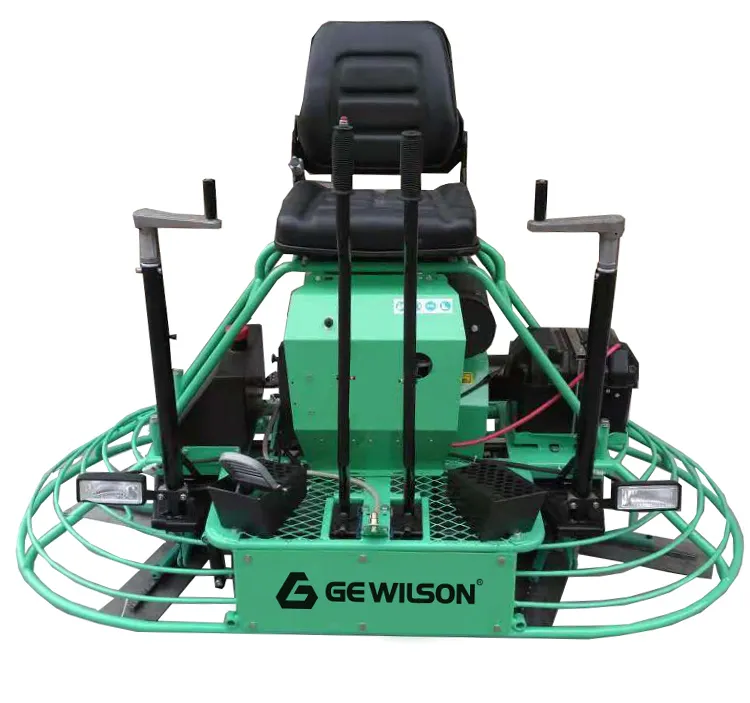

Product show

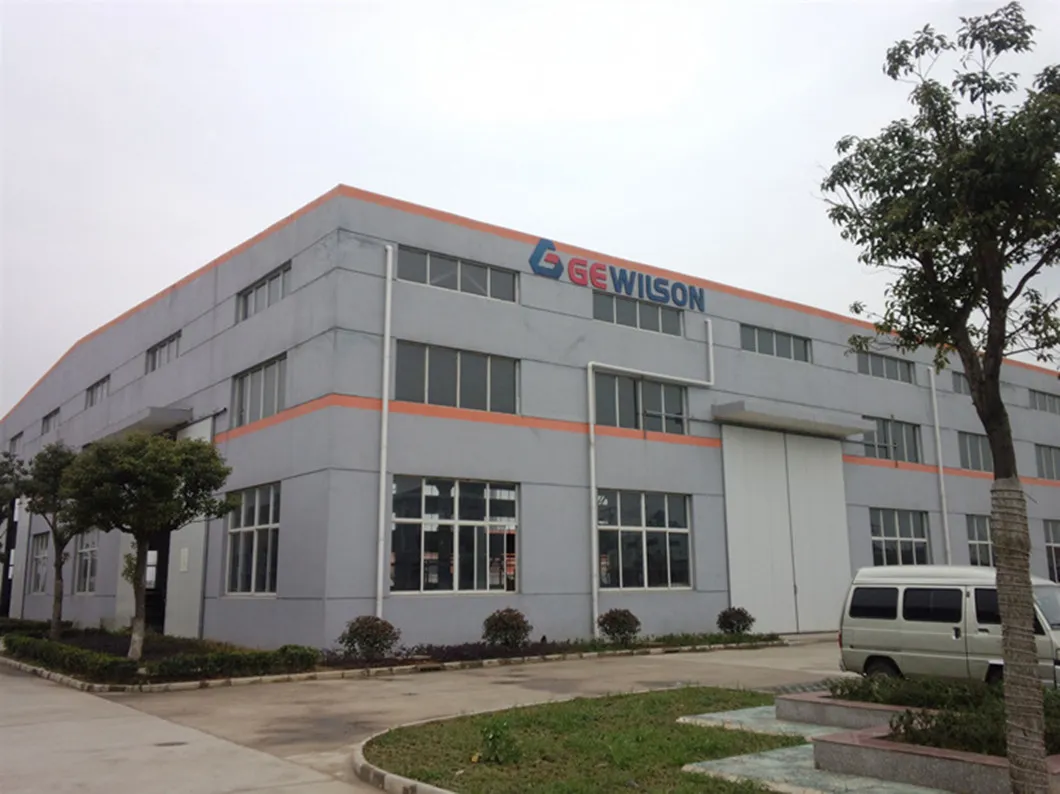

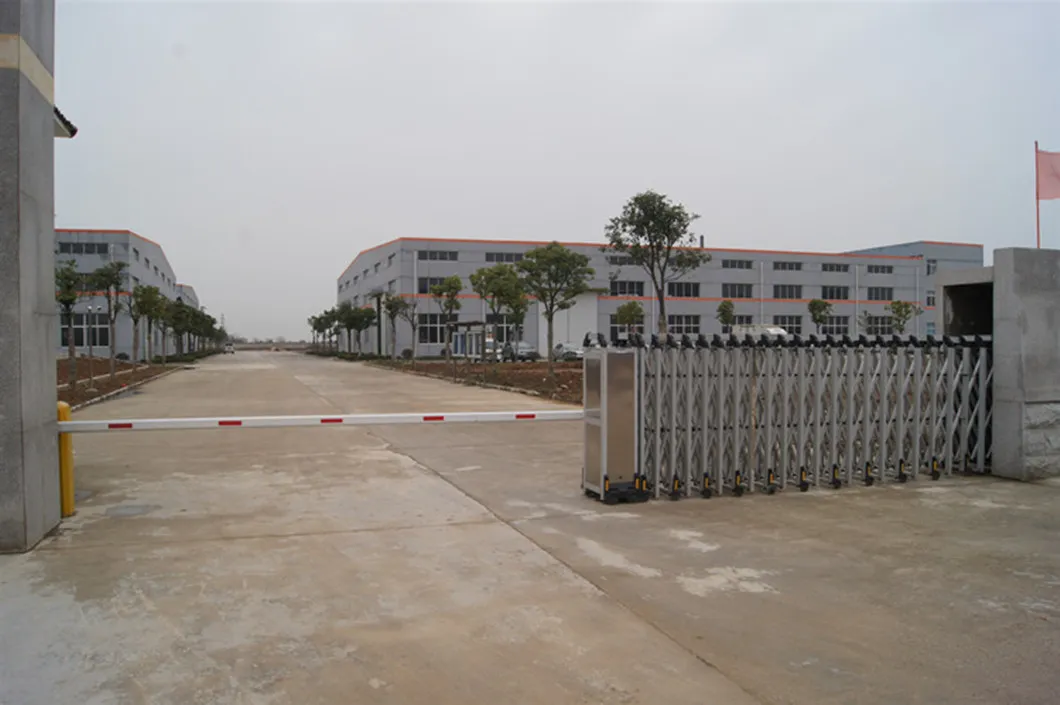

Factory show
Canton Fair and Cooperation
Certificate&Authorization
Company introduction
Gewilson is one the national leading manufactures and exporters of powered equipment in China ,It is specialized in generator ,gasoline and diesel generator sets, gasoline and diesel engine ,water pump,garden machinery,small construction equipment and so on. The company has approved ISO9001 quality system certificate, the products have approved the certificate of CE, EPA, etc.80% of our products are exported abroad, mainly to USA, Europe,Australia, South Asia and Africa.
If you are interested in our products, please feel free to contact us , we will give a detailed introduction to your questions.
Features:
1. Heavy duty gearbox provides longer life and low maintenance.
2. Steering system features a twin stick multi-directional steering system, providing immediate machinecontrol and precise maneuverability
3. Fine hand control for able pitch ensure precise blade adjustment.
4. Tilt forward seat reveals a bulit in hoist hook for transport on or off the work site and allow easy engine access.
5. Adjustable sliding seat for Front-To-Back.
6. Low machine profiles provide a low center of gravity and check the working area easily.
7. Rugged frame is made of harden steel for severest site conditions.
8. Super heavy-duty gearbox and spider assemblystands up for the most grueling job.
9. Side mounted fuel tank and water tank with big wolume for long working time
10. Trowel arm alignment: Adjustment screws allow easy job site blade alignment.
11. Light is adjustment for different direction.
12. Tool kit convenient location easy for operator.
Specifications for GMQ836
| Model | GMQ836H160 | GMQ836BS3864 | GMQ836K740 |
| Working diameter mm(inch) | 1910(75) | 1910(75) | 1910(75) |
| Guard diameter mm | 1000(39) | 1000(39) | 1000(39) |
| Rotation speed r.p.m. | 70-150 | 70-150 | 70-150 |
| Pitch range | 0-15° | 0-15° | 0-15° |
| Operating weight kg | 340 | 340 | 340 |
| Gear box oil capacity L | 1.18 | 1.18 | 1.18 |
| Engine model | GX690 | 3864 | CH740 |
| Engine output hp | 23.0 | 23.0 | 27.0 |
| Package mm | 2080*1150*1330 | 2080*1150*1330 | 2080*1150*1330 |

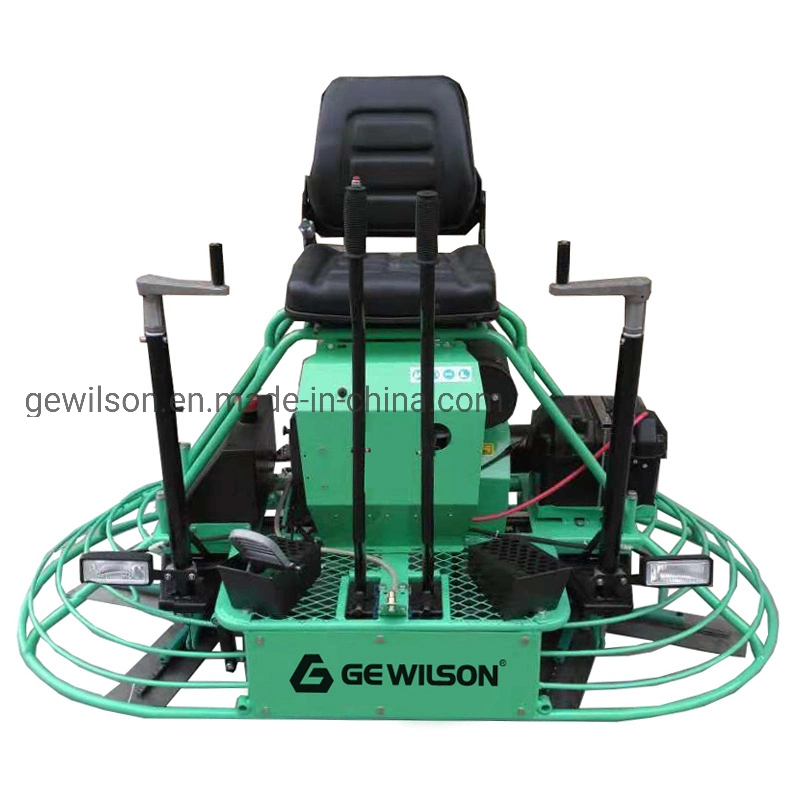

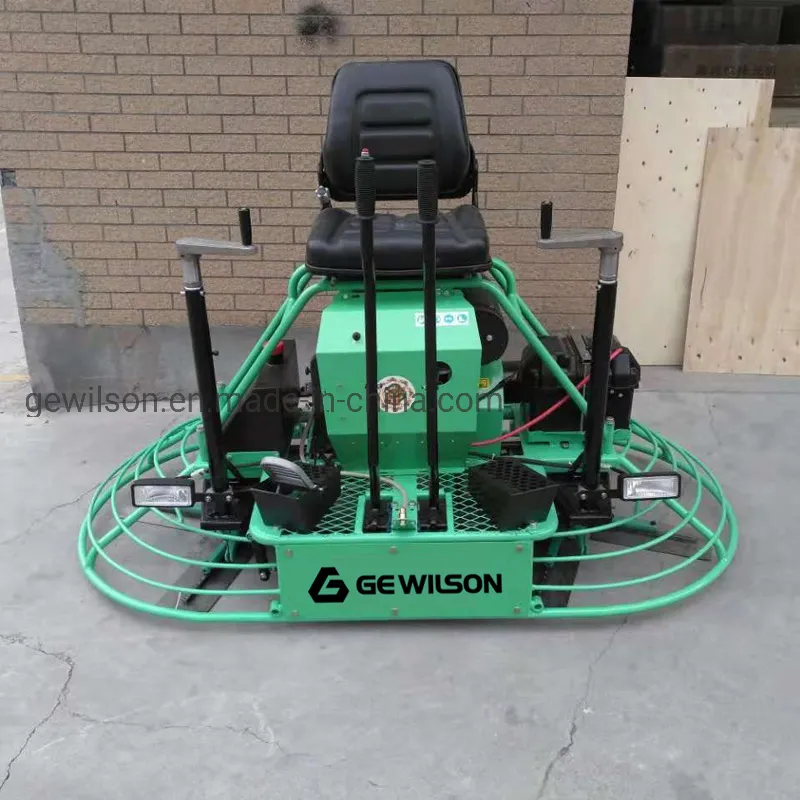

Product show
Factory show
Canton Fair and Cooperation
Certificate&Authorization
Company introduction
Gewilson is one the national leading manufactures and exporters of powered equipment in China ,It is specialized in generator ,gasoline and diesel generator sets, gasoline and diesel engine ,water pump,garden machinery,small construction equipment and so on. The company has approved ISO9001 quality system certificate, the products have approved the certificate of CE, EPA, etc.80% of our products are exported abroad, mainly to USA, Europe,Australia, South Asia and Africa.
If you are interested in our products, please feel free to contact us , we will give a detailed introduction to your questions.
