Top Hollow Core Fiber Fusion Splicer: Mastering Precision Splicing Techniques

2026-08-10

Imagine a fiber core so hollow that light glides through air, unlocking low-latency, high-power delivery that standard fibers can only envy. Yet splicing these delicate hollow-core marvels demands more than skill—it requires fusion technology that respects their fragile microstructures. Enter DVP's Top Hollow Core Fiber Fusion Splicer, engineered to turn precision into a repeatable art. In this blog, we peel back the curtain on techniques that master the impossible, sharing insights that will redefine what you expect from splicing.

Why Hollow Core Fibers Demand a Rethinking of Splicing

Hollow core fibers guide light through an air-filled core, a design that fundamentally differs from the solid glass cores of conventional fibers. In standard fibers, the core and cladding share similar material properties, making fusion splicing a straightforward process of melting and joining identical silica structures. But with hollow core fibers, the delicate microstructure—often a photonic bandgap or anti-resonant lattice—must remain intact to confine the light. Any deformation, contamination, or collapse of these air holes destroys the guiding mechanism, which means the splicing technique has to be reimagined from the ground up.

Traditional arc-fusion splicers rely on precisely controlled heat to soften and fuse the fiber ends, but they are calibrated for solid-core geometries. When applied to hollow core fibers, the heat can easily cause the thin walls of the microstructured cladding to melt and close the air channels. Even a slight misalignment or excessive discharge time leads to catastrophic optical loss, as the guided mode no longer has a pristine hollow pathway. The materials themselves also play a role: many hollow core fibers use specialized glasses or polymer coatings that react differently to thermal stress, making the standard fusion recipe obsolete.

Rethinking splicing for hollow core fibers means moving away from melt-based approaches altogether, or developing highly customized, low-temperature techniques. Some solutions involve cleaving under vacuum to prevent debris from entering the core, aligning the fibers with sub-micron precision, and then using a gentle heat source or adhesive-based mechanical splice to maintain the air-guiding structure. Others explore laser-based fusion with pulse durations so short that only the outer cladding fuses without disturbing the core region. Ultimately, the path to reliable interconnections demands not just modified equipment, but a complete shift in mindset—treating these fibers as waveguide structures that require preservation rather than simple physical joining.

Alignment Tricks That Make or Break Splice Quality

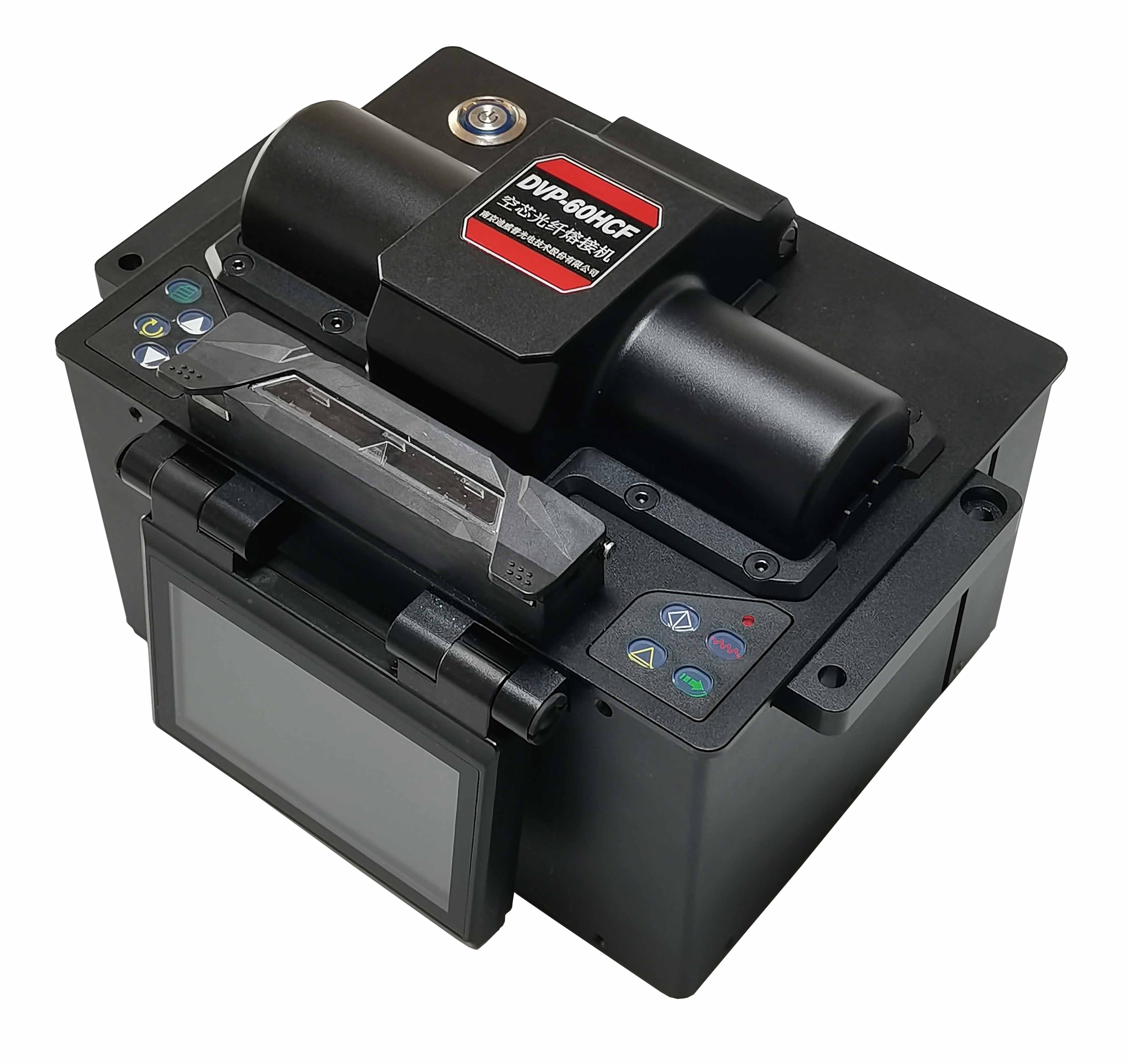

top Hollow core Fiber Fusion Splicer

Getting a clean splice often hinges on how well the fibers or strands are lined up before bonding. Even a fractional misalignment can create weak points that grow into full failures under load. The trick is to treat alignment not as a one-time check but as a constant condition you maintain throughout the process—align, hold, verify, then bond. For instance, when working with synthetic rope, allowing just one strand to slip out of parallel reduces the overall break strength by more than the missing percentage would suggest, because the uneven loading cascades through the rest of the structure.

Small adjustments in handling can make an outsize difference. Using consistent tension—not too slack, not overly tight—while bringing two ends together prevents a starved or bulky joint. Visual guides help, but nothing beats the feedback from slowly pre-stretching the alignment by hand and feeling for subtle twisting. Many failures trace back to rushing this step or relying solely on clamping force to correct alignment later. Another underappreciated detail: the direction of lay in twisted or braided materials. Matching the original twist count and orientation during a splice preserves the intended load distribution, while an accidental half-twist concentrates stress in unexpected places.

Dialing In Heat and Feed: Parameters That Actually Matter

The difference between a clean, strong weld and a warped mess often comes down to two dials you can actually control: heat input and feed rate. Too many beginners treat these as fixed numbers from a chart, but in practice, the material thickness, joint configuration, and even ambient shop temperature can shift your sweet spot. The key is learning to read the puddle—if it’s sluggish and the arc feels sticky, you’re likely running cold; a violently fluid puddle with excessive spatter means you’ve pushed past the upper bound. Small, thoughtful adjustments here beat blindly trusting a preset every time.

Feed speed ties directly into deposition rate and penetration profile, but pairing it with the right voltage level is where real consistency lives. Cranking the wire faster without giving the arc enough “push” creates a narrow, ropey bead that sits on top instead of biting in. Conversely, over-volting on a moderate feed produces a flat, wide wash that lacks root fusion. Getting comfortable with the relationship between these two lets you adapt on the fly—thinner sections might want a faster travel speed with a momentary bump in wire, while heavy material demands a slower, hotter pass to ensure solid tie-in at the toes.

One often-overlooked aspect is how travel speed interacts with both settings. A perfectly tuned heat-and-feed combo falls apart if you’re rushing or hesitating along the joint. Practice maintaining a steady forward motion and watch how the leading edge of the puddle reacts: when every parameter clicks, there’s a faint oscillating hum, the slag peels by itself, and you can actually feel the difference through the stinger. That feedback loop—your eyes, your ears, and the muscle memory in your hands—is the real baseline that no automated table can replicate.

What Field Engineers Won’t Tell You About Real-World Splicing

Most training manuals show pristine fiber ends cleaved at perfect right angles, but out in the field you'll deal with dust, humidity, and that one guy who keeps bumping the table. The real art of splicing isn't in the machine settings—it's in learning to compensate for imperfect conditions without letting the OTDR traces give you away. You develop a sixth sense for when a splice loss looks too good to be true, and you start carrying alcohol wipes like they're a survival tool.

Everyone focuses on the fusion splice itself, but the quiet chaos happens long before the electrodes fire. Stripping buffer tubes in sub-zero temperatures turns your fingers numb, and you'll discover gel-filled cables have a personal vendetta against your clean workspace. The real skill is managing the spaghetti of loose tubes without kinking the fiber, all while pretending you aren't quietly cursing the engineer who designed the splice case with insufficient tray space.

Newcomers obsess over splice loss readings, but veterans know a 0.02 dB splice today can become a 3 dB nightmare six months later if the heat shrink wasn't positioned just right. The unforgiving truth is that your splice isn't finished when the green light comes on—it's only done after the cable slack settles, the closure is buttoned up, and nobody's calling you back because a micro-bend finally snapped during the first cold night. The machine can't teach you how to read strain, and no spec sheet warns you about the technician before you left a fingerprint on the bare glass.

Spotting and Fixing Micro voids Before They Ruin Performance

Micro voids might be tiny, but their impact on performance is anything but small. In composites, adhesives, or coatings, these invisible pockets of air or gas can quietly undermine structural integrity, thermal conductivity, or electrical insulation. The trick is catching them early. High-resolution ultrasonic scanning, X-ray computed tomography, or even simple dye-penetrant tests can reveal their presence before they turn into catastrophic failures. Paying close attention to process parameters like mixing speed, vacuum levels, and cure cycles often gives the first hint that something's off.

Once spotted, fixing micro voids requires a mix of process tweaks and targeted interventions. Reducing resin viscosity by adjusting temperature or adding compatibilizers allows trapped air to escape more easily. Applying vacuum during mixing or part consolidation can suck out the voids before the material sets. For existing parts, low-viscosity infiltration resins can be wicked into the imperfections under pressure or vacuum, sealing them from the inside out. It's a delicate dance of timing and technique, but the payoff is a part that behaves as designed, not as a hidden flaw dictates.

Next-Gen Techniques for Tomorrow’s Hollow Core Networks

As we push fiber capacity toward the petabit scale, hollow core fiber (HCF) is rewriting the physics of light delivery—virtually eliminating latency and nonlinearity. One breakthrough lies in nested anti-resonant nodeless fiber (NANF) designs, which confine >99.9% of light in air, slashing signal propagation delay to near-vacuum speeds. Combined with advanced modulation formats like probabilistically shaped 64-QAM, these fibers are already demonstrating record spectral efficiency over trans-oceanic distances without the traditional dispersion compensation overhead. The result is a new breed of ultra-low-latency links that financial trading platforms and distributed computing clusters are racing to adopt.

Beyond the glass, network architects are coupling HCF with hollow core bandgap routing nodes that can steer wavelength channels directly in the photonic domain, bypassing costly optical-electrical conversions. These all-optical add-drop multiplexers leverage the fiber's wide transmission window—from 1260 nm to 1625 nm—enabling seamless integration of classical and quantum channels on a single strand. Early trials show that co-propagating quantum key distribution signals alongside 400G coherent channels suffers virtually no Raman noise, a feat impossible in solid-core fibers. This opens a path to inherently secure infrastructure where encryption keys and data share the same medium, without sacrificing throughput.

Looking ahead, the real transformation may come from hollow core's ability to support spatial division multiplexing beyond the capacity crunch. By precisely engineering the microstructure geometry, researchers have demonstrated multiple low-loss orbital angular momentum modes within a single HCF—each capable of carrying independent data streams. Paired with AI-driven mode demultiplexers that untangle crosstalk in real time, this could multiply link capacity by orders of magnitude while maintaining the latency advantage. It's a move from linear scaling to exponential growth, all while keeping networks lighter, cooler, and ready for the zettabyte era.

FAQ

What exactly are hollow core fibers and what advantages do they offer over traditional solid core fibers?

Hollow core fibers guide light primarily within a central air or vacuum channel, rather than through a solid glass core. This design drastically reduces nonlinear effects, latency, and material absorption, making them ideal for high-power laser delivery, ultrafast pulse transmission, and sensing in harsh environments.

What are the main challenges when splicing hollow core fibers compared to standard fibers?

The primary difficulty lies in preserving the delicate microstructured cladding and preventing the collapse of the hollow core during heating. Even slight contamination or misalignment can cause massive insertion loss and back-reflection, so precise alignment, ultra-clean cleaving, and carefully controlled arc parameters are essential.

Which features should you look for in a top-tier hollow core fiber fusion splicer?

Look for splicers offering high-magnification dual-axis viewing, active core alignment for microstructured fibers, adjustable and stable arc discharges with low-temperature options, integrated plasma cleaning, and specialized fixtures that hold the fiber without crushing the fragile cladding structure.

How can you achieve consistently low splice loss with hollow core fibers?

Consistently low loss requires meticulous fiber preparation: flawless cleaves perpendicular to the axis, rigorous cleaning of bare fiber ends, and real-time alignment feedback. The splice program must be optimized for the specific fiber type, often using a low-energy, short-duration arc with a slight offset to avoid core deformation.

What are the best practices for cleaning and cleaving hollow core fibers before splicing?

Always use fresh, lint-free wipes with high-purity isopropyl alcohol to clean both the buffer coating and bare glass. Cleaving should be performed with a dedicated cleaver calibrated for the fiber’s diameter, aiming for a cleave angle below one degree. Immediately after cleaving, inspect the end face under a microscope to ensure no cracks or debris are present.

In which applications is hollow core fiber splicing most critical, and why?

It is critical in high-precision fields such as medical laser surgery, where beam quality must be preserved; in gas spectroscopy and sensing, where any loss disrupts light-gas interaction; and in quantum communications, where signal integrity is paramount. Reliable low-loss splices enable these fibers to be integrated into practical systems.

Conclusion

Mastering hollow-core fiber splicing isn't just about owning the right machine—it's about rethinking every step of the process. The unique structure of hollow-core fibers, with their delicate air-guiding cores and absence of traditional dopants, forces you to abandon the 'set and forget' habits that work on standard fibers. Even the tiniest alignment error can collapse the mode field, so tricks like multi-axis active core detection and real-time power monitoring become your lifeline. You learn fast that gentle clamping and rotational alignment aren't optional; they're the difference between a sub-decibel loss and a useless joint. Then there's the heat dance—too much arc power and the microstructured cladding caves in, too little and you're left with a cold splice that fails at the first bend. Getting those parameters right feels less like following a recipe and more like tuning a musical instrument, where subtle changes in feed speed and fusion time create harmony instead of chaos.

Out in the field, the real education begins. No one tells you that a perfectly clean lab splice can still develop micro-voids once it's exposed to temperature swings or vibration. You develop an eye for those almost invisible gaps—tiny disruptions that scatter light and kill latency just when you're pushing 400G signals. Portable inspection scopes and local reheating techniques become your back-pocket fixes. The engineers who excel are the ones who treat every splice like a prototype, logging split-second camera glimpses and post-joint power readings to build a personal playbook. Looking ahead, the next generation of splicers will automate much of this nuance, but the human intuition—knowing when to override a machine's judgment—will still be the secret sauce. Hollow-core networking isn't just about connecting fibers; it's about preserving the vacuum-like clarity that makes this technology revolutionary, one precise splice at a time.
