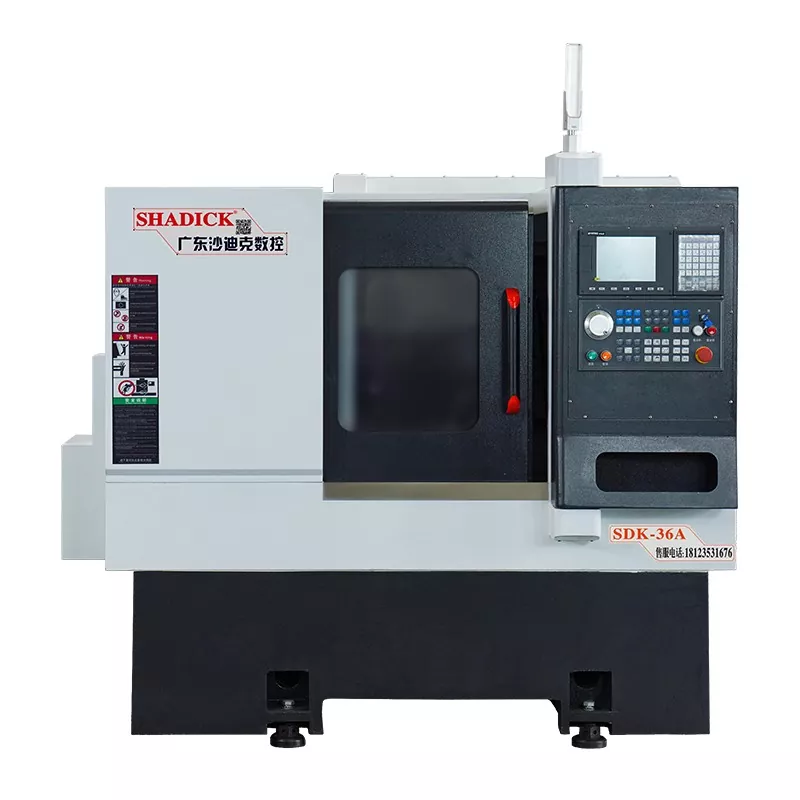

Exploring the Structural Advantages of 36-Row Tool CNC Machine Tools for Complex Machining

As manufacturing processes evolve toward higher precision and greater production efficiency, machine tool design plays a pivotal role in shaping operational outcomes. The 36-Row Tool CNC Machine Tools embody this principle by offering a structural configuration that addresses both performance demands and long-term reliability.

A key innovation lies in the machine's overall 45-degree inclined bed design. This feature enhances chip removal efficiency by guiding machining debris directly into the chip removal groove through the inclined surface. This design significantly reduces the risk of tool interference or damage from iron chip entanglement, ensuring consistent machining quality and reducing downtime associated with manual chip cleaning.

Equally important is the foundation material and structural integrity of the machine bed. Constructed entirely from HT300 gray cast iron, the bed provides excellent rigidity and damping characteristics. Following the machining of critical surfaces, the entire structure undergoes an annealing process to relieve internal stresses, which is essential for maintaining dimensional stability and accuracy over time. The integration of the bearing seat within the bed further enhances overall rigidity, contributing to higher precision during high-load machining operations.

Operational efficiency is also addressed through thoughtful design details. The T-shaped cutting plate configuration is optimized to minimize tool change duration, supporting faster production cycles. The machine’s 35-degree inclined bed angle provides operators with easier access for clamping and unloading workpieces, improving ergonomics and reducing the time required for setup adjustments.

In terms of versatility, the machine’s large working envelope sets it apart. The X-axis stroke extends to 800mm, while the Z-axis reaches 300mm, offering ample space to accommodate complex components, power heads, or multi-functional attachments. This flexibility allows manufacturers to handle diverse machining requirements within a single setup, reducing the need for multiple machines and streamlining production workflows.

By combining structural strength, intelligent design, and generous working space, the 36-Row Tool CNC Machine Tools provide a reliable platform for precision manufacturing. Whether applied to automotive, aerospace, or general industrial components, these machines deliver the accuracy, efficiency, and operational stability required for today’s high-performance machining environments.
