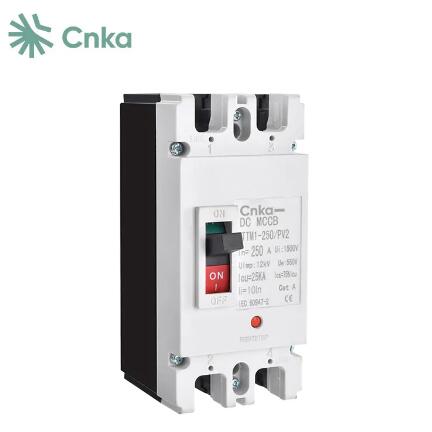

How to Select the Right 200A Circuit Breaker DC MCCB for Your Needs

Choosing the right 200A Circuit Breaker DC MCCB for your electrical system is crucial to ensure safety and reliability. In this blog, we will guide you through the factors to consider when selecting a DC MCCB, helping you make an informed decision.

Understanding Your Electrical Load

The first step in selecting a 200A DC MCCB is understanding the electrical load it will need to protect. This involves calculating the total current demand of the system and ensuring that the breaker can handle this load without tripping unnecessarily. A 200A rating means the breaker can handle up to 200 amps, making it suitable for high-demand systems.

Consider the Voltage Rating

DC MCCBs come with specific voltage ratings, and it's important to choose a breaker that matches the voltage of your system. For instance, if you're working with a 48V solar system, you'll need a breaker rated for at least 48V DC. Using a breaker with an incorrect voltage rating can lead to inadequate protection or even damage to the breaker itself.

Look for Certifications and Standards

Ensure that the 200A DC MCCB you choose meets relevant industry standards and certifications. This includes compliance with standards like IEC, UL, or CE, which guarantee that the breaker has been tested for safety and performance. Using a certified breaker ensures that you're getting a product that has been rigorously tested and proven to perform reliably.

Thermal-Magnetic Trip Curve

The trip curve of a DC MCCB indicates how the breaker will respond to different levels of overcurrent. A thermal-magnetic trip mechanism provides dual protection: thermal protection for prolonged overloads and magnetic protection for short circuits. Understanding the trip curve will help you choose a breaker that responds appropriately to the specific demands of your system.

Size and Mounting Options

Consider the physical size and mounting options of the 200A DC MCCB, especially if space is limited in your installation area. Some breakers are designed to be more compact, making them suitable for tight spaces. Additionally, consider whether the breaker is easy to install and if it comes with the necessary mounting hardware.

Environmental Considerations

If the breaker will be installed in a harsh environment (e.g., outdoors, in a dusty or humid area), look for a 200A DC MCCB with a high IP rating (Ingress Protection). This ensures that the breaker is protected against dust and moisture, extending its lifespan and maintaining its reliability.

Conclusion

Selecting the right 200A Circuit Breaker DC MCCB is essential for ensuring the safety and reliability of your electrical system. By considering factors such as load capacity, voltage rating, certifications, trip curve, size, and environmental conditions, you can make an informed choice that meets your specific needs. Investing in the right breaker not only protects your equipment but also provides peace of mind knowing that your system is safeguarded against potential faults.
