The Art of Precision: A Guide to Understanding Cylinder Pin Shapes and Features

Cylinder pins are cylindrical metal pins that can vary in size, materials, and shape depending on the application. Their cylindrical shape provides precision and accuracy, ensuring a secure and precise connection between two mechanical parts. But what is the usual shape of a cylinder pin, and are there any typical features that differentiate them?

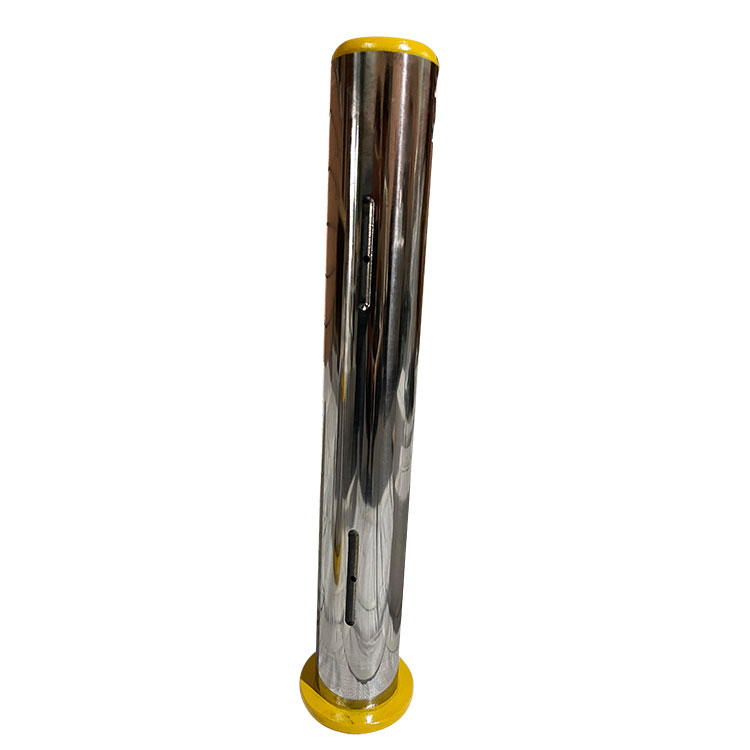

The Usual Shape of a Cylinder Pin

The usual shape of a cylinder pin is a cylindrical shaft with a straight or tapered end. The shaft's diameter can range from a few millimeters to several centimeters, and the length varies according to the application. The tapering helps the pin fit snugly into the hole, providing additional stability. The shaft is typically smooth or textured for better adhesion to the mating parts.

Different Types of Cylinder Pins

There are different types of cylinder pins, and their shapes and features can vary depending on the application. Here are a few types of cylinder pins along with their unique characteristics:

Solid Pin: A solid cylinder pin is entirely solid or features a solid core with a hollow end. Solid pins are stronger than other cylinder pin types due to their unbroken shape and structure.

Split Pin: A split cylinder pin has a split end that allows for the pin to expand and contract, providing an added level of flexibility and ease in installation.

Threaded Pin: A threaded cylinder pin features threads along the shaft, allowing for the pin to be screwed into place. Threaded pins eliminate the need for a retaining clip, which can offer additional space-saving benefits.

Dowel Pin: A dowel cylinder pin has two precision ends designed for accurate alignment between mating parts. Pins of this type are often used in applications that require precise alignment, such as in machinery or engines.

Conclusion

Cylinder pins are an essential component in many mechanical systems that require secure and precise connections between two parts. The cylindrical shape of cylinder pins provides precision and accuracy, and they come in various shapes and sizes depending on the application. The standard shape of a cylinder pin is a cylindrical shaft with a straight or tapered end, but there are different types with specific characteristics made for unique applications. The different features of cylinder pins allow for flexibility in their design and use. Each type of cylinder pin has unique attributes that can be applied in specific situations, so understanding their differences is critical in selecting the ultimate part for a particular job.
