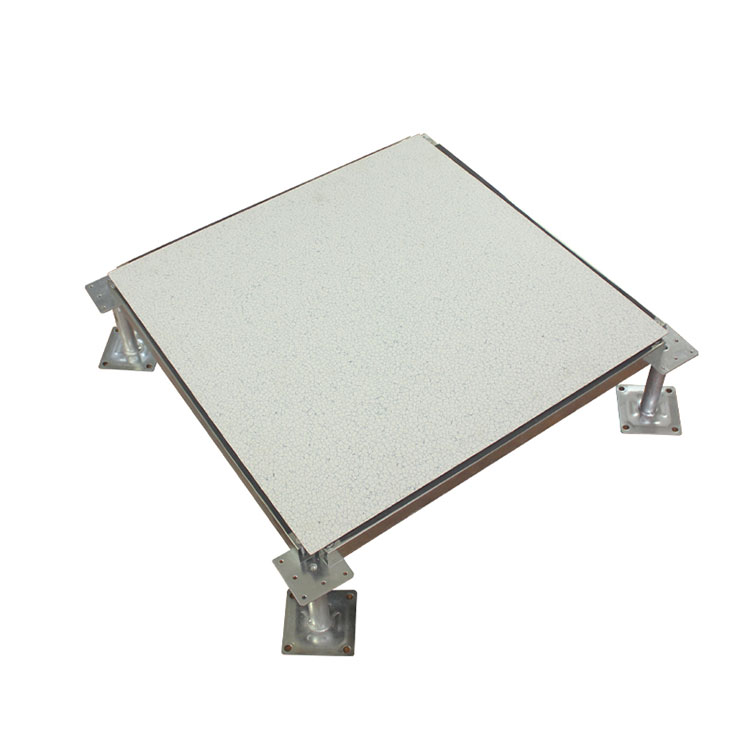

The workingprinciples of Steel Overhead Active Floor

The Steel Overhead Active Floor (SOAF) system is a specialized architectural and engineering solution, often used in advanced building infrastructure for specific functional or structural purposes. Here's a general breakdown of the working principles behind such a system:

1. Structural Support via Steel Framework

The steel overhead structure serves as a strong, load-bearing framework suspended from the main building structure (e.g., roof trusses or upper floors).

High-strength steel beams or trusses are used to form the core skeleton.

It can support heavy equipment, systems, or even provide walkable platforms above a workspace (e.g., labs, factories, clean rooms).

2. "Active" Functionality Integration

The term "active" typically means the floor isn’t just static but integrates with systems such as:

HVAC (Heating, Ventilation, Air Conditioning): Ducting or diffusers integrated into the floor for air distribution.

Mechanical systems: Conveyor belts, robotics, or lifts may be embedded for automated operations.

Electrical/IT Infrastructure: Cables and data lines run through the floor to power equipment below or above.

3. Modular & Accessible Design

The floor is often modular, meaning panels can be removed or rearranged for maintenance or upgrades.

Access panels or tracks may allow technicians to get to embedded systems or reconfigure them without major renovations.

4. Applications in Clean or Controlled Environments

In cleanrooms, data centers, or high-tech manufacturing:

The SOAF system supports airflow control (laminar or pressurized air).

It may be part of a plenum design where air is pushed down from the overhead floor into the working space.

5. Installation and Maintenance Considerations

Installed using suspended support systems like rods or braces.

Requires careful load calculations to ensure stability and balance.

Maintenance may involve accessing internal channels or replacing worn components without affecting floor stability.
