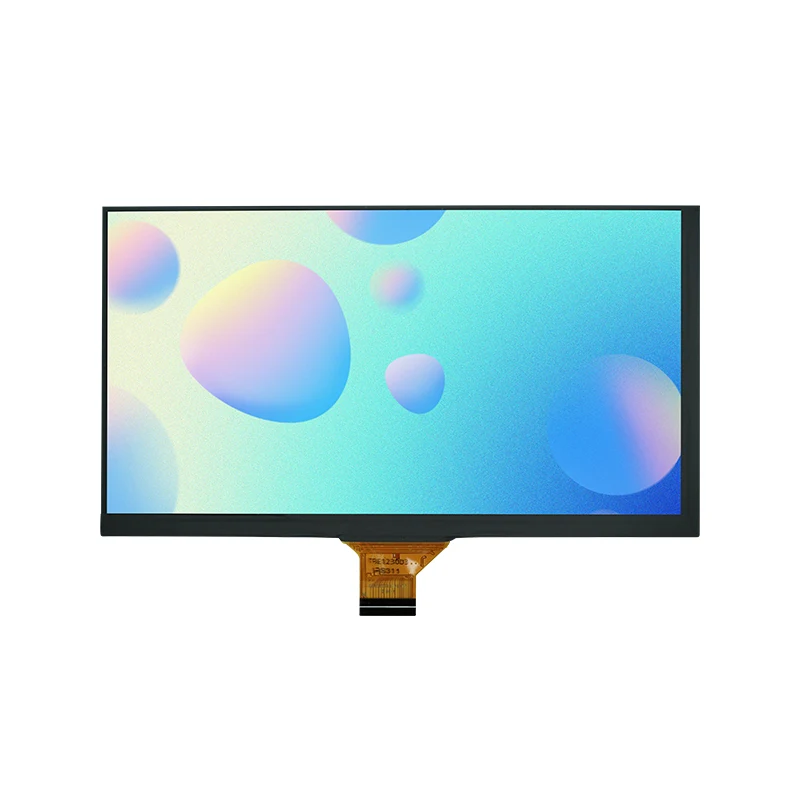

Unveiling the TN TFT LCD Screen: Technical Principles and Cutting-Edge Applications

In the world of display technology, the TN TFT LCD Screen remains a foundational and widely utilized solution. Understanding its core principles and specifications is crucial for engineers, purchasers, and tech enthusiasts alike. This article delves into the inner workings of this technology and explores its modern applications.

Technical Principles of TN TFT LCD Screen

The "TN" in TN TFT LCD Screen stands for Twisted Nematic, which refers to the alignment of liquid crystals within the display. In their natural state, these crystals are twisted by 90 degrees. The fundamental principle involves manipulating this twist using an electrical voltage.

Here’s a simplified breakdown:

1. Backlight: A uniform light source is placed behind the liquid crystal layer.

2. Polarizers: Two polarizing filters are placed at the front and back of the cell. Their axes are perpendicular to each other.

3. Voltage Application: When no voltage is applied, the twisted nematic crystals guide the light from the backlight, rotating its polarization by 90 degrees. This allows light to pass through the second polarizer, making the pixel appear bright.

4. Pixel Activation: When voltage is applied, the crystals untwist and align with the electric field. This prevents the light from being rotated, blocking it from passing through the second polarizer, thus making the pixel appear dark.

By precisely controlling the voltage for each sub-pixel (red, green, blue), a TN TFT LCD Screen generates the full range of colors and images we see. The "TFT" (Thin-Film Transistor) part is the active matrix that controls each pixel individually, leading to faster response times than passive matrices.

Key Product Parameters and Specifications

The performance of any display is defined by its technical parameters. Below is a detailed list and table showcasing typical specifications for a standard TN TFT LCD Screen.

Core Parameters List:

• High Refresh Rate: Typically ranging from 60Hz to 240Hz, crucial for smooth motion rendering.

• Fast Response Time: Often as low as 1ms (Gray-to-Gray), minimizing motion blur and ghosting.

• High Brightness: Commonly between 250 and 500 nits, ensuring visibility in various lighting conditions.

• High Contrast Ratio: Such as 1000:1, providing distinction between bright and dark areas.

• Wide Operating Temperature Range: Suitable for industrial environments.

Primary Applications of TN TFT LCD Screen

The unique combination of fast response, cost-effectiveness, and reliability makes the TN TFT LCD Screen the preferred choice for several key industries.

1. Gaming Monitors: The exceptionally fast response time (1ms) is critical for competitive gaming, where every millisecond counts to eliminate smearing and motion artifacts.

2. Industrial Equipment: These displays are built to withstand harsh conditions, including extreme temperatures and continuous operation. They are found in factory control panels, medical devices, and test and measurement equipment.

3. Consumer Electronics: Many budget-friendly monitors, point-of-sale (POS) systems, and appliance dashboards utilize a TN TFT LCD Screen due to its low cost and dependable performance.

In conclusion, while newer technologies like IPS and VA offer wider viewing angles, the TN TFT LCD Screen continues to hold a significant market position thanks to its unparalleled response speed, durability, and economic value for specific, performance-driven applications.
