What Are The Advantages of C-frame Presses Compared to H-frame Presses?

The C-frame press has long been a preferred choice in metal forming, stamping, and assembly applications because of its open-frame design and convenient operation. At Shandong Digor Heavy Machinery Co., Ltd., our factory specializes in designing and manufacturing both C-frame and H-frame presses to suit different industrial demands. By comparing the two types, users can better understand why many workshops and production lines select the C-frame structure for efficiency, precision, and maintenance convenience.

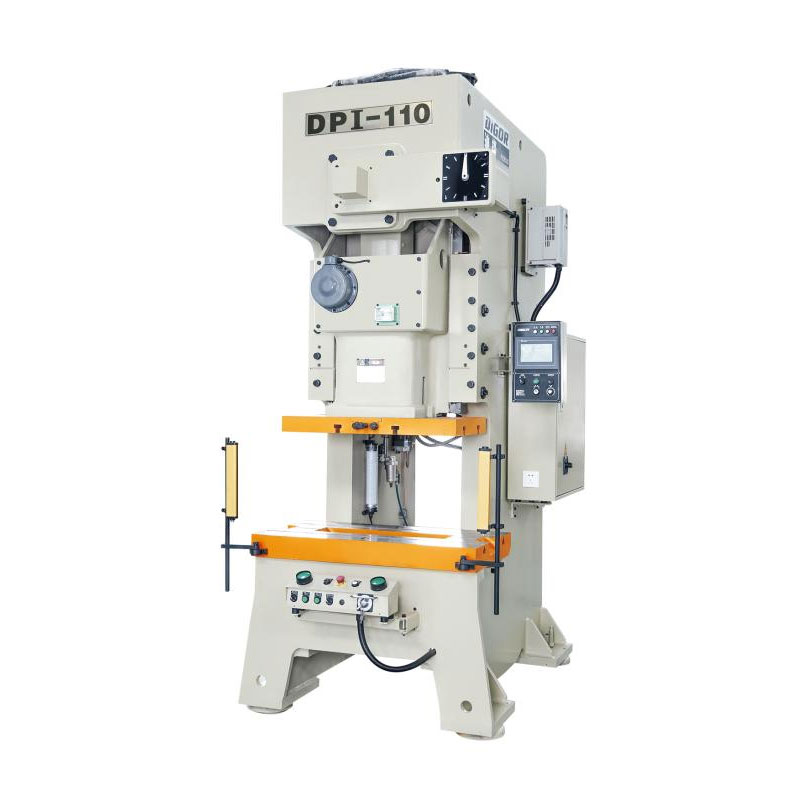

Structural Characteristics of C-frame Presses

Our C-frame press features a compact, open structure that provides excellent access from three sides. This design simplifies tool and die changes and makes it easier for operators to load and unload materials. The open front design also allows for fast part inspection and higher production throughput in repetitive operations. At Shandong Digor Heavy Machinery Co., Ltd., our factory builds each frame from high-strength welded steel to ensure rigidity and vibration resistance under heavy loads.

In contrast, H-frame presses use a closed frame with four vertical columns. While they provide higher tonnage and better load distribution, their structure limits accessibility and makes maintenance slightly more time-consuming. The main difference lies in the balance between open access and force stability, where C-frame presses stand out for ergonomic operation and versatility.

Performance Comparison and Efficiency

One of the key advantages of our C-frame press is its ability to deliver consistent pressure across the working stroke while maintaining structural stability. Our factory integrates advanced hydraulic systems and digital control modules to ensure precise pressure control and stroke repeatability. This makes the C-frame press particularly suitable for operations such as punching, riveting, bending, and light forming.

Although H-frame presses generally handle heavier loads, they require more floor space and higher setup effort. In smaller production environments, our C-frame presses provide a cost-effective solution without compromising output accuracy. For example, our models deliver tonnage from 10T to 250T, sufficient for most sheet metal forming and precision assembly tasks.

Product Technical Parameters

Why Choose a C-frame Press for Your Workshop

Our factory focuses on efficiency, durability, and operator safety. The C-frame press offers a smaller footprint, making it ideal for confined production spaces. It allows easy integration into automatic lines or single-station operations. With our optimized frame geometry, users experience minimal deflection, ensuring longer tool life and consistent part quality.

Another practical advantage is maintenance simplicity. Because all mechanical and hydraulic components are accessible from the front and sides, our C-frame press reduces downtime and simplifies periodic inspections. These attributes make it one of the most cost-efficient and versatile press designs in the metalworking industry.

Applications in Modern Manufacturing

Our C-frame press is widely used in industries such as automotive parts manufacturing, electrical components assembly, appliance production, and hardware processing. The versatility of this press design makes it suitable for both manual and automated operations. At Shandong Digor Heavy Machinery Co., Ltd., we continuously improve the energy efficiency and structural precision of our equipment to meet global industrial standards.

By selecting our C-frame press, users benefit from compact design, high operational flexibility, and ease of maintenance—key features that improve productivity and reduce long-term operational costs compared to H-frame presses.

FAQs About What Are The Advantages of C-frame Presses Compared to H-frame Presses?

Q1: What Are The Advantages of C-frame Presses Compared to H-frame Presses?
A1: The main advantage is accessibility. A C-frame press allows operators to approach the working area from three sides, making loading, unloading, and maintenance faster. It requires less space, provides good rigidity for small to medium tonnage tasks, and is more ergonomic for repetitive operations.

Q2: Are C-frame presses suitable for high-precision applications?
A2: Yes. Our C-frame press models are equipped with precision hydraulic control systems that ensure accurate pressure and stroke control. This makes them suitable for fine stamping, precision forming, and assembly work where tolerance and repeatability are critical.

Q3: How does the structure of a C-frame press influence long-term performance?
A3: The open frame design reduces weight and material use, yet with proper reinforcement, it maintains excellent rigidity. At our factory, we utilize high-grade steel and stress-relieving processes to minimize deformation, ensuring stable performance even under long production cycles.

Conclusion

In summary, understanding What Are The Advantages of C-frame Presses Compared to H-frame Presses? helps industries choose the right press for their specific production needs. The C-frame press, with its open structure, small footprint, and ease of maintenance, is an ideal solution for operations demanding accessibility and precision. Shandong Digor Heavy Machinery Co., Ltd. continues to develop innovative designs and reliable performance to meet the evolving requirements of global manufacturing.
