Which Carriage Bolts Are Right for Your Project?

Article Summary

Carriage bolts are widely used in woodworking, metal fabrication, outdoor structures, furniture assembly, and general construction. Their rounded heads and square necks provide a distinctive fastening design that can help prevent rotation during installation. However, choosing the wrong diameter, length, material, thread specification, or corrosion protection can lead to loose joints, damaged materials, premature rust, and unnecessary maintenance costs. This guide explains how carriage bolts work, how to select the right specifications, how to install them correctly, and what buyers should evaluate when sourcing them from a reliable manufacturer.

Carriage Bolts: A Practical Guide to Reliable Fastening

Reliable fastening is essential to the strength, stability, and service life of almost every assembled product. Whether a manufacturer is building timber frames, a contractor is installing outdoor structures, or a furniture producer is assembling heavy-duty components, the fasteners used in each joint directly influence the finished product's performance.

Carriage bolts are a popular choice when a project requires a smooth, rounded head on one side and a secure threaded connection on the other. Their distinctive square neck can engage with the surrounding material, helping the bolt resist turning as the nut is tightened.

Despite their familiar appearance, carriage bolts are not interchangeable with every other bolt type. Differences in material, dimensions, thread design, head geometry, and protective finish can significantly affect their suitability for a particular application.

Understanding these differences helps buyers avoid common procurement mistakes, reduce assembly problems, and select fasteners that meet the actual demands of their projects.

1. What Are Carriage Bolts?

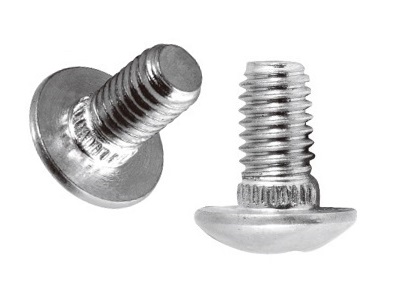

Carriage bolts are threaded fasteners typically characterized by a rounded, low-profile head and a square section directly beneath it. This square neck is designed to engage with a prepared hole or the material being fastened, reducing the tendency of the bolt to rotate while a nut is tightened.

They are commonly used to connect wood to wood, metal to wood, and certain metal components when the joint design accommodates their head and neck geometry. Depending on the product specification, carriage bolts may feature a fully threaded or partially threaded shank.

The rounded head is especially useful when a smooth exterior surface is desirable. Unlike a conventional hex-head bolt, a carriage bolt does not normally require a wrench to hold its head during tightening when the square neck has properly engaged with a suitable mating material.

Why are they popular in fastening projects?

• Smooth appearance: The domed head creates a finished look and reduces exposed sharp edges.
• Reduced rotation: The square neck helps resist turning during nut tightening.
• Versatile installation: They can be used in many timber assemblies and compatible mixed-material joints.
• Accessible maintenance: A nut-based connection can be inspected, tightened, or disassembled when the design allows.
• Multiple specifications: Different diameters, lengths, materials, and finishes support diverse operating conditions.

The key is to match the fastener to the joint. A carriage bolt that works well for a garden bench may not be appropriate for a vibrating machine, a structural connection, or equipment exposed to aggressive chemicals.

2. How Do Carriage Bolts Work?

A carriage bolt usually passes through aligned holes in the components being joined. A compatible washer and nut are then fitted to the threaded end, and tightening the nut draws the components together.

As the nut turns, the square neck beneath the bolt head engages with the surrounding material. In a suitable timber joint, the neck can bite into the wood and resist rotation. In metal assemblies, the hole geometry, material thickness, and presence of an appropriate square-neck seating feature must be considered carefully.

The basic fastening process

1. Align the components. Position the workpieces so their holes line up accurately.
2. Insert the bolt. Pass the bolt through the prepared holes from the head side.
3. Seat the square neck. Ensure the neck engages with the material or an appropriately designed mating feature.
4. Install the washer and nut. Use compatible hardware when required by the joint design.
5. Tighten the connection. Apply an appropriate tightening method without crushing the material or damaging the threads.
6. Inspect the joint. Confirm that the components are seated correctly and that the bolt has not spun excessively during tightening.

3. Main Components and Design Features

Knowing the major parts of a carriage bolt makes specification sheets easier to understand and helps buyers communicate their requirements accurately.

Dimensional details matter because even a small mismatch can create assembly difficulties. For example, an oversized square neck may not seat correctly in a prepared opening, while an unsuitable thread specification can prevent the nut from engaging properly.

4. Types and Materials of Carriage Bolts

Carriage bolts are available in various materials and finishes. Selecting the right combination requires an understanding of environmental exposure, expected loads, appearance, maintenance requirements, and applicable standards.

Carbon steel carriage bolts

Carbon steel is commonly selected for general-purpose fastening because it offers a broad range of mechanical property options and is suitable for many construction, furniture, and industrial applications. Its performance depends on the grade, heat treatment where applicable, manufacturing process, and specified mechanical requirements.

Uncoated carbon steel can corrode when exposed to moisture. A suitable protective coating may therefore be necessary, particularly for outdoor installations or products stored in humid environments.

Stainless steel carriage bolts

Stainless steel is often preferred for applications requiring improved corrosion resistance, including outdoor furniture, certain marine-adjacent installations, food-related equipment, and architectural assemblies. The appropriate stainless steel grade depends on the environment and the chemicals or salts involved.

Stainless steel is not universally corrosion-proof. Chlorides, crevices, temperature, surface contamination, and contact with dissimilar metals can affect performance. Grade selection should reflect the actual exposure conditions rather than relying on the stainless designation alone.

Galvanized carriage bolts

Galvanized finishes provide a zinc-based protective layer that helps protect steel against corrosion. Hot-dip galvanized and electroplated products have different coating characteristics, thicknesses, and suitability for particular environments.

When a project specifies galvanized fasteners, buyers should confirm the required coating process and thickness, as well as compatibility with the mating nuts and washers. Coating thickness can also affect thread fit.

Other protective finishes

Depending on availability and the intended application, carriage bolts may also be supplied with other coatings or surface treatments. These should be selected according to documented performance requirements rather than appearance alone.

These comparisons are general guidance, not a substitute for material certification or environmental testing. Actual performance depends on the product specification, coating quality, installation details, and service conditions.

5. Common Applications Across Industries

The combination of a smooth head and a rotation-resistant neck makes carriage bolts useful across numerous sectors. However, their use should always be consistent with the design requirements of the finished assembly.

Woodworking and furniture manufacturing

Carriage bolts are frequently used in benches, tables, bed frames, shelving, timber furniture, and other assemblies where a neat exposed head is desirable. They can help create secure, serviceable connections without leaving a conventional wrench-shaped head visible.

Construction and timber structures

Timber framing, fencing, decking components, gates, and outdoor structures may use carriage bolts to connect suitable wooden members. The selected fastener must account for moisture exposure, timber species, member thickness, edge distances, and the structural loads involved.

Metal fabrication and equipment assembly

Carriage bolts can connect metal brackets, panels, and supporting components when the receiving holes or mating parts are designed for the square neck. A standard round hole in hard metal may not provide sufficient rotational resistance, so assembly design must be evaluated before specifying this fastener.

Agricultural and outdoor equipment

Equipment exposed to changing weather conditions may benefit from corrosion-resistant materials or finishes. Vibration, impact, dirt, and repeated maintenance should also be considered when selecting the fastener and its locking arrangement.

Commercial and industrial products

Manufacturers may use carriage bolts in display structures, storage systems, support frames, and various fabricated products. Consistent dimensions and dependable supply are especially important when fasteners are used in repeat production runs.

6. How to Choose the Right Carriage Bolts

Choosing carriage bolts by price alone can lead to higher total costs if the fasteners fail to fit, corrode prematurely, or require rework during assembly. A systematic selection process helps buyers balance performance, cost, and availability.

Step 1: Identify the application

Define what the fastener will connect, whether the joint is permanent or serviceable, and whether it carries static loads, dynamic loads, or vibration. Identify any relevant structural, product-safety, or industry-specific requirements before requesting quotations.

Step 2: Determine the diameter

The nominal diameter affects the bolt's tensile capacity and its fit within the prepared hole. The required diameter should be determined from the joint design, load conditions, material properties, and applicable standards. A larger diameter is not automatically better if the surrounding material cannot accommodate it safely.

Step 3: Calculate the required length

Measure the total thickness of the components being joined and consider any washers, spacers, or other hardware. Allow enough threaded length for proper nut engagement while avoiding unnecessary protrusion that could interfere with adjacent components.

Remember that carriage bolt length is commonly measured from the bearing surface beneath the head to the end of the bolt, rather than including the head height. Confirm the measurement convention with the supplier's dimensional drawing.

Step 4: Choose the material and finish

Evaluate indoor or outdoor exposure, moisture, chemicals, temperature, and contact with dissimilar metals. Select a material and coating combination that meets the service requirements and is compatible with the mating hardware.

Step 5: Verify thread specifications

Check the nominal thread diameter, pitch, thread series, tolerance, and threaded length. The bolt and nut must be compatible. Mixing similar-looking but incompatible thread systems can damage the threads or prevent secure assembly.

Step 6: Confirm standards and documentation

Where a drawing or purchase specification calls for a particular standard, grade, or mechanical property class, verify that the offered product complies with it. Request relevant inspection records, material documentation, and test reports when required.

Step 7: Assess the supplier

A dependable supplier should be able to clarify dimensions, material options, surface treatments, tolerances, packaging, and production lead times. For customized or repeat orders, clear drawings, documented specifications, and agreed inspection criteria help reduce sourcing risk.

7. Understanding Carriage Bolt Sizes and Dimensions

Carriage bolt size descriptions commonly include the nominal diameter, overall bolt length, thread specification, material, and finish. Depending on the market and application, measurements may be expressed in metric or imperial units.

Metric and imperial specifications

Metric carriage bolts are commonly specified using millimeters, while imperial versions use inches and may follow different thread systems. Conversion between these systems should not be based on diameter alone because thread pitch, tolerances, and standard dimensions may differ.

For example, a bolt with a diameter close to a metric size is not necessarily interchangeable with its nearest imperial equivalent. Buyers should state the complete specification instead of ordering by an approximate measurement.

When custom dimensions are required

Some production applications require a particular head profile, square-neck dimension, thread length, coating, or packaging arrangement. In these cases, provide a dimensioned drawing and define critical tolerances clearly. Before mass production, inspect samples to confirm that the fasteners fit the intended assembly.

8. Installation Best Practices

Correct installation is as important as selecting the right bolt. Poorly prepared holes, inadequate engagement, excessive tightening, and incompatible hardware can undermine an otherwise suitable fastening system.

Prepare the holes carefully

Use hole dimensions appropriate to the fastener and the material. In wood, consider the species, density, moisture condition, and risk of splitting. Keep the hole aligned with the intended joint geometry and avoid placing it too close to an edge unless the design specifically permits it.

Seat the square neck correctly

Confirm that the square neck is engaging with the receiving material or a suitable mating feature. If the bolt rotates freely, stop and investigate rather than relying on excessive force. The cause may be an oversized hole, insufficient engagement, incorrect geometry, or unsuitable material.

Use compatible washers and nuts

Washers may help distribute pressure over the bearing surface and protect softer materials from localized damage. Nut selection should match the bolt's thread and mechanical requirements. For vibration-prone assemblies, consider an appropriate locking method specified by the design.

Apply suitable tightening force

Overtightening can crush wood fibers, damage coatings, strip threads, or distort components. Under-tightening can allow movement and loosening. Use a documented torque specification where one exists, taking into account the bolt, nut, lubrication, coating, and joint materials.

Inspect the completed joint

• Check that the bolt head is properly seated.
• Verify that the nut has sufficient thread engagement.
• Look for cracks, crushing, deformation, or misalignment in the connected materials.
• Confirm that the coating has not been excessively damaged during installation.
• Inspect safety-critical connections according to the applicable maintenance and engineering requirements.

9. Common Carriage Bolt Problems and Practical Solutions

Recognizing common installation and purchasing problems helps reduce downtime and prevent repeated failures.

Repeated failures should be treated as a joint-design or process-control issue rather than simply a reason to replace the bolts. A proper investigation considers the fastener, connected materials, installation process, environment, and loading conditions together.

10. Quality Inspection and Purchasing Considerations

For distributors, importers, and manufacturers, consistent fastener quality is essential to production efficiency and customer satisfaction. A well-defined purchasing specification helps suppliers understand exactly what is required and reduces the risk of receiving unsuitable products.

What should buyers inspect?

• Dimensions: Verify nominal diameter, length, head profile, square-neck dimensions, and threaded length against the approved drawing or standard.
• Thread quality: Check thread form, pitch, fit, and freedom from visible defects.
• Surface condition: Look for excessive rust, cracks, burrs, coating damage, and other unacceptable defects.
• Material identity: Confirm that the supplied material matches the agreed specification and supporting documentation.
• Mechanical properties: Where required, obtain appropriate test results or certificates for the specified product grade.
• Coating consistency: Verify the specified finish and relevant thickness or corrosion-resistance requirements.
• Packaging and identification: Ensure the product is protected during transportation and clearly identified by size, material, finish, and batch where applicable.

Questions to ask a carriage bolt supplier

1. Which sizes, materials, and finishes are available?
2. Can you supply the required metric or imperial thread specification?
3. Which product standards and mechanical property requirements can be supported?
4. Can you provide drawings, samples, and relevant inspection documentation?
5. What are the minimum order quantity, production lead time, and packaging options?
6. How are dimensional consistency and batch traceability managed when required?
7. Can the supplier accommodate customized specifications after technical review?

For large-volume purchasing, total cost should include more than the quoted unit price. Shipping, inspection, assembly labor, defect rates, corrosion protection, and product availability all influence the actual cost of using a fastener over its service life.

11. Maintenance and Service Life

Carriage bolts generally require limited maintenance when correctly specified and installed, but their service life depends on the surrounding environment and the demands placed on the joint.

Routine inspection

Outdoor structures, equipment exposed to vibration, and frequently used assemblies should be inspected at intervals appropriate to their operating conditions. Look for corrosion, loosening, material damage, deformation, and evidence of movement around the joint.

Managing corrosion

Keep fasteners and adjacent surfaces free from accumulated moisture and contaminants when practical. Avoid aggressive cleaning methods that may damage protective coatings. If corrosion is repeatedly observed, investigate whether the material, coating, drainage, or maintenance process needs to be changed.

Replacing damaged fasteners

Replace bolts with damaged threads, significant corrosion, deformation, or other defects that compromise their intended function. Do not assume that a replacement with the same nominal diameter is equivalent if its material grade, length, thread specification, or coating differs.

For safety-critical joints, follow the applicable inspection procedures and engineering guidance. Any retightening or replacement work should preserve the intended joint design and specified installation requirements.

12. Frequently Asked Questions About Carriage Bolts

13. Source Carriage Bolts With Confidence From Jiamei

Choosing the right fastener supplier can make a meaningful difference to purchasing efficiency, assembly consistency, and long-term product performance. Buyers need clear specifications, dependable communication, consistent product quality, and supply arrangements that match their production schedules.

Jiamei is a potential sourcing contact for buyers exploring metal fasteners and related products. When evaluating carriage bolts for your project, clearly communicate your required dimensions, material, surface treatment, thread details, applicable standards, and order volume so that product suitability and availability can be assessed accurately.

Before placing a bulk order, confirm the detailed specification, request samples or drawings where appropriate, and agree on inspection and delivery requirements. These steps can help minimize dimensional mismatches, unnecessary production delays, and avoidable purchasing costs.
